SMW & Associates Inc. worked on several specialty structures that required innovative thinking and design beyond the design of conventional building structures.  Often these specialty structures are not governed by standard building codes, so it is critical that we establish the design criteria based on our understanding of the structural principals and project requirements.

Slow Food Nation Beer Pavilion, San Francisco, CA

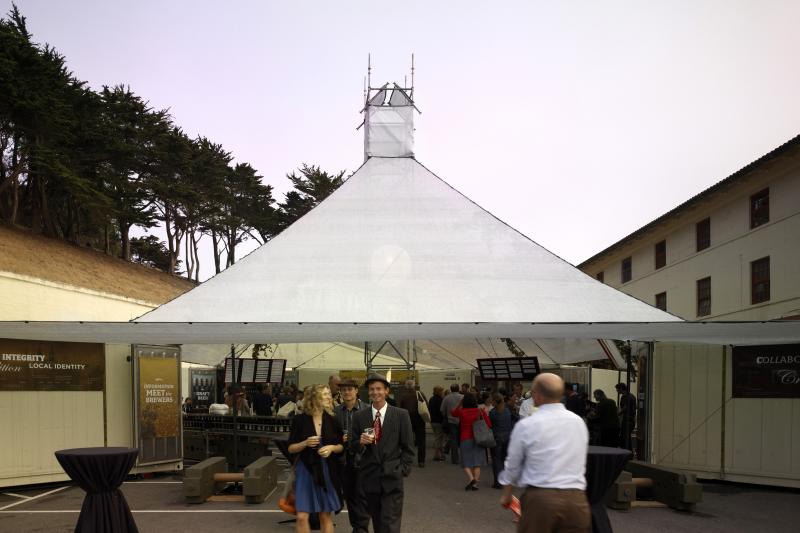

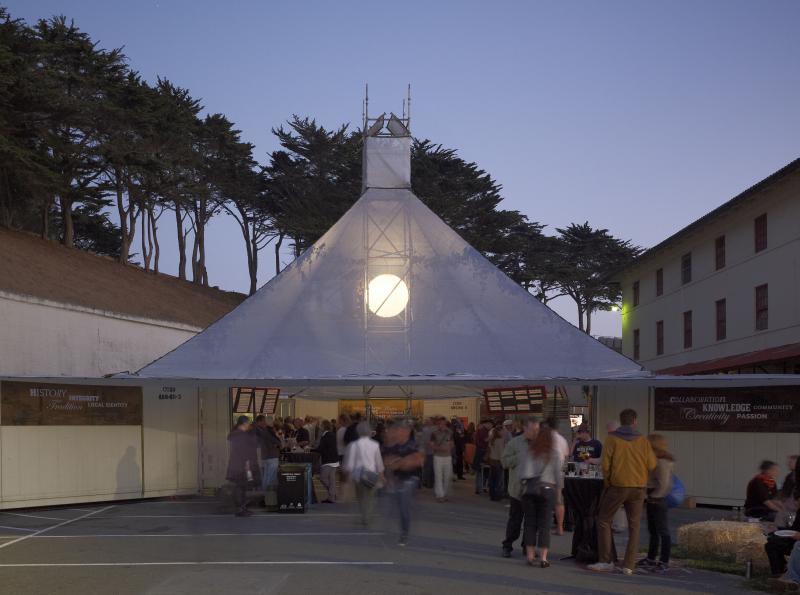

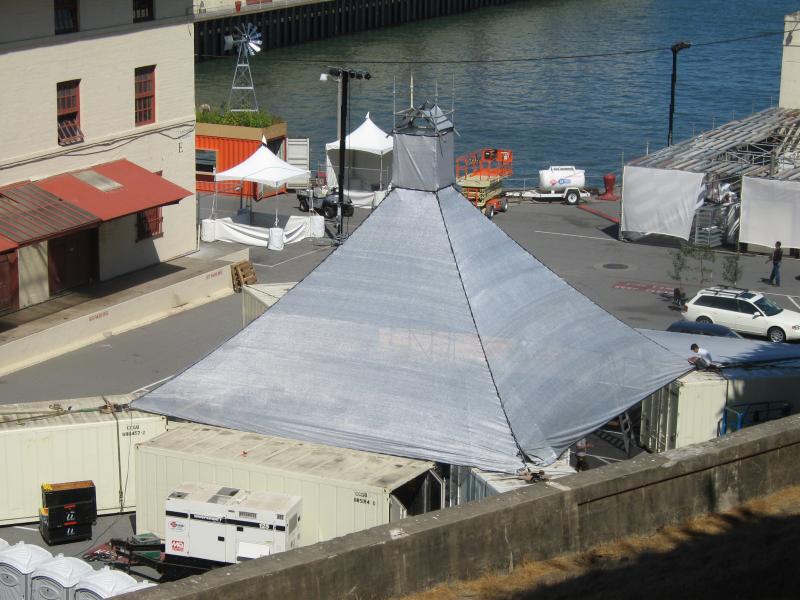

SMW & Associates Inc. collaborated with designer John Randolph in the design of the Beer Pavilion for the Slow Food Nation 2008 event held in San Francisco. The Beer Pavilion was one of the two freestanding outdoor pavilions erected at the Fort Mason site. The pavilion took on the shape of a hop kiln measuring 35ft square by 36ft tall.  It was designed as a tent structure with a central tower and cable guide wires supporting a fabric skin.

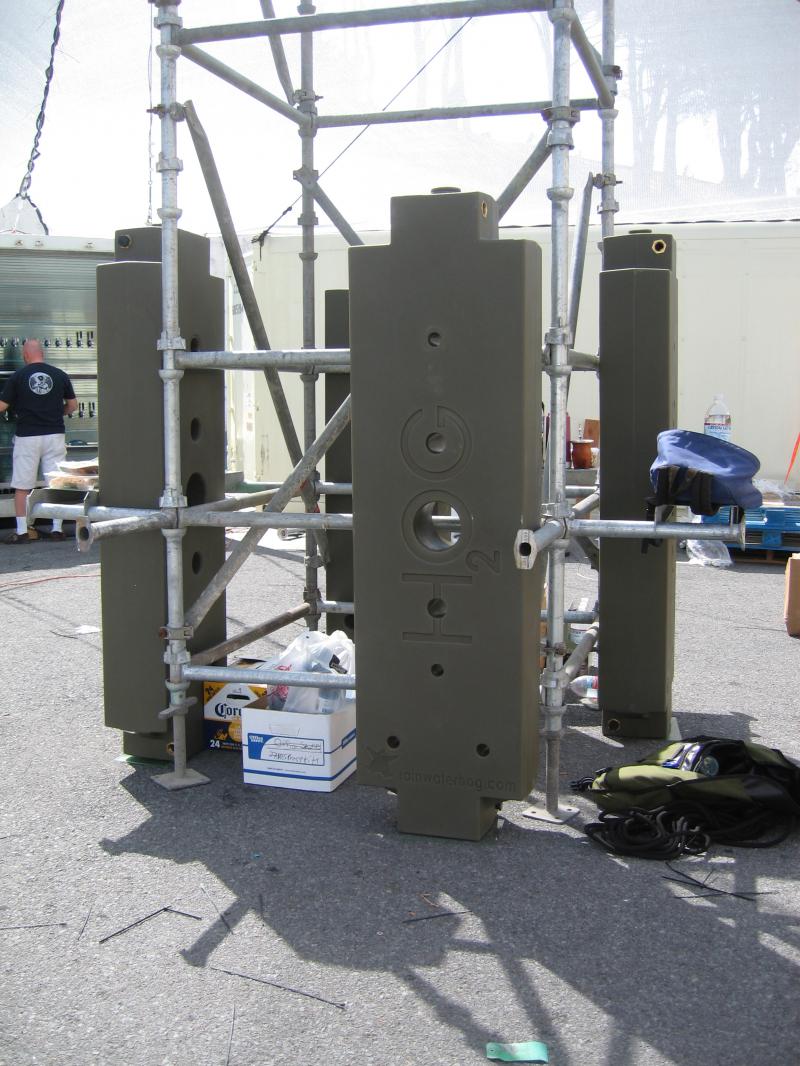

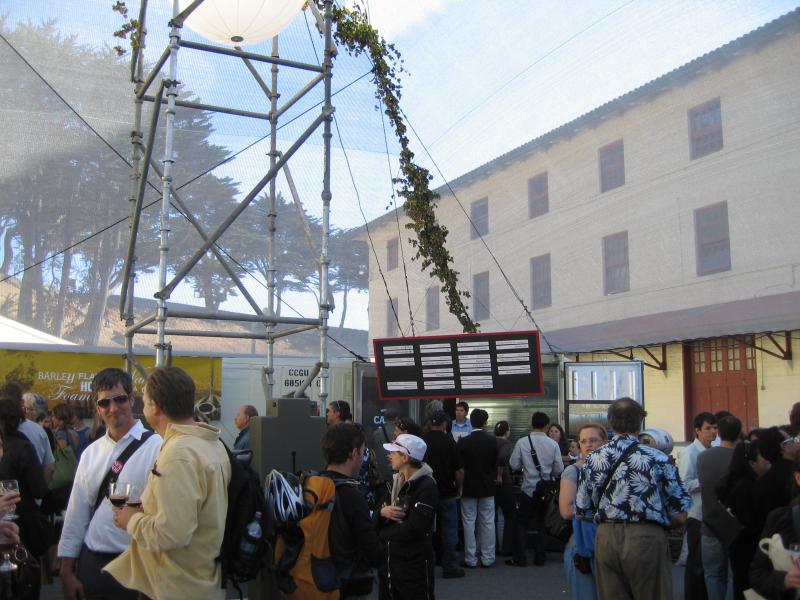

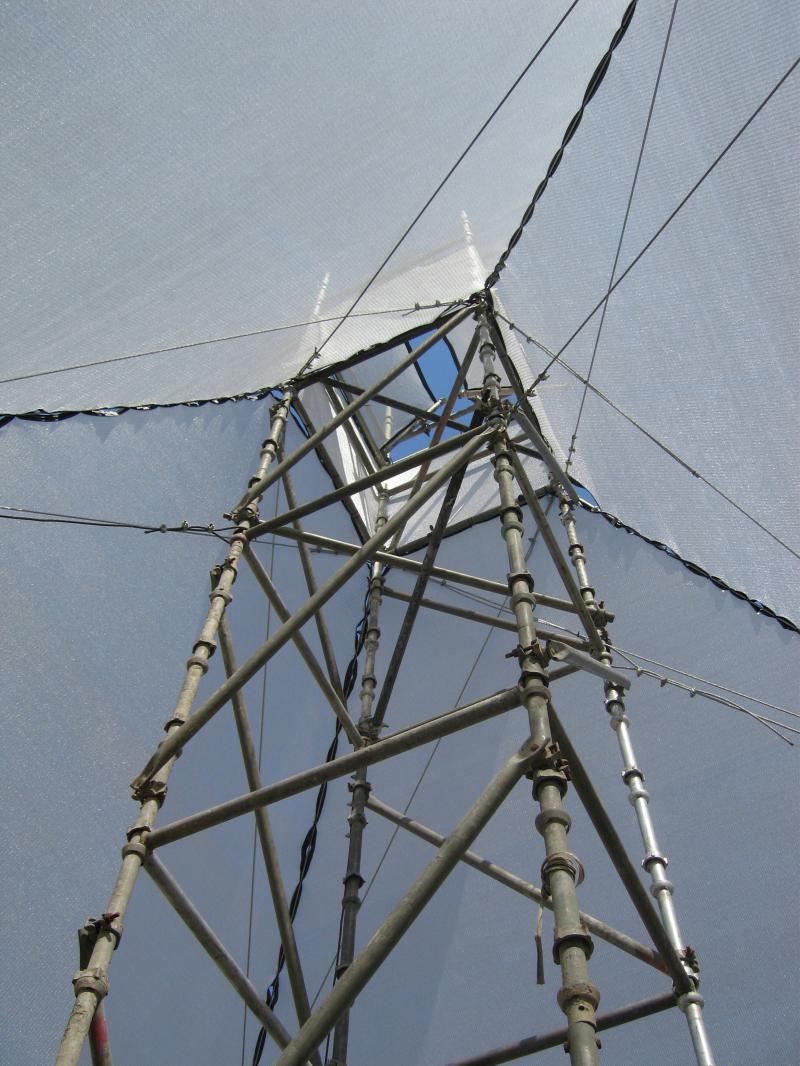

The central tower utilized prefabricated scaffolding tubes and clamps for ease and speed of construction. The base of the tower was anchored with four “Waterhog” tanks to prevent any lateral movement at the base caused by accidental impact load. In addition, the tanks acted as counterweights against any uplift wind load.

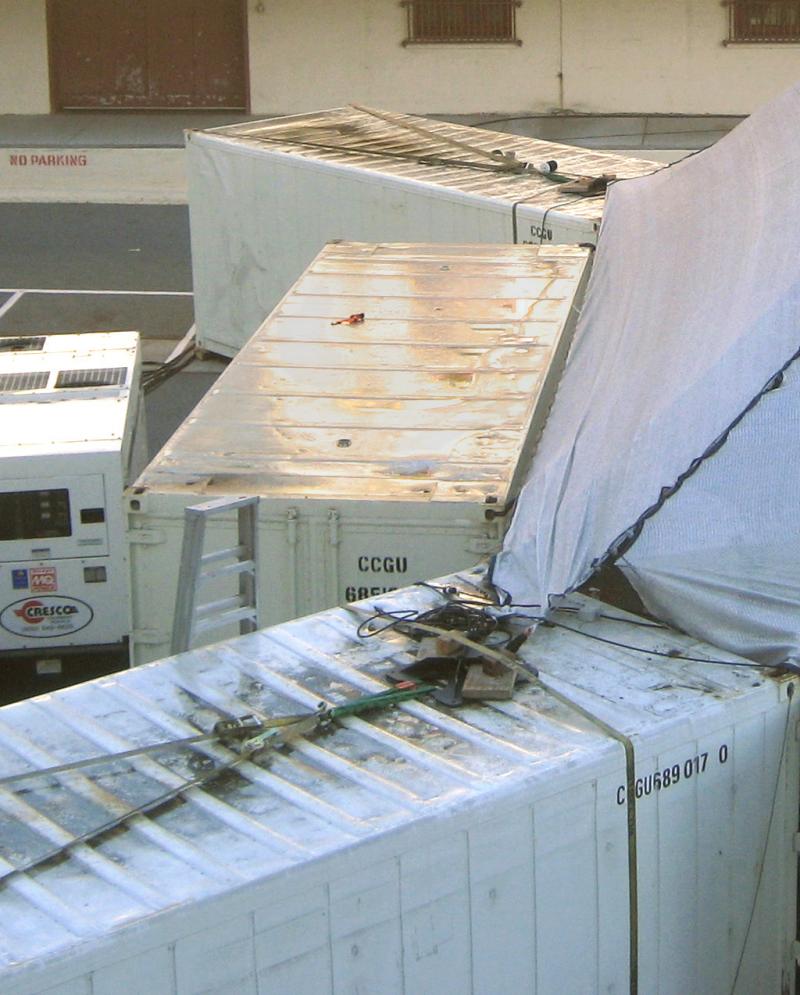

1/2” diameter cables were used to brace the tower as well as provide attachment points for the perforated aluminum fabric. The cables were attached to refrigerated containers on the four corners of the pyramid. The containers served as anchors for the tent structure as well as storage for the variety of beers to be served at the festival.

No fabrication was involved with any of the structural elements. The entire structure was assembled in three days, from the delivery of the containers to the installation of the tent fabric.

SMW & Associates Inc. provided pro bono services for this project along with many other design professionals, volunteers and companies that donated materials and goods.  It is our office’s goal to donating 2% of our time annually to worthy causes. Our efforts on this project represent our 2008 contribution towards this goal.

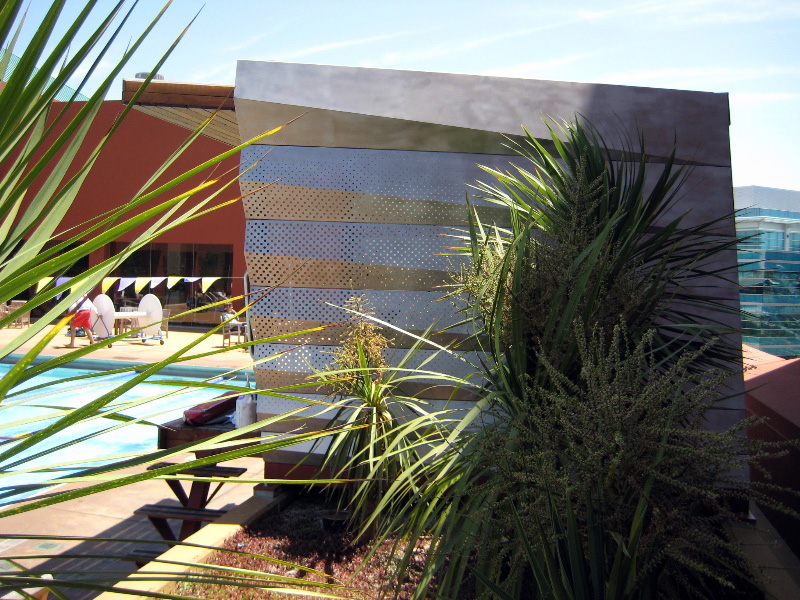

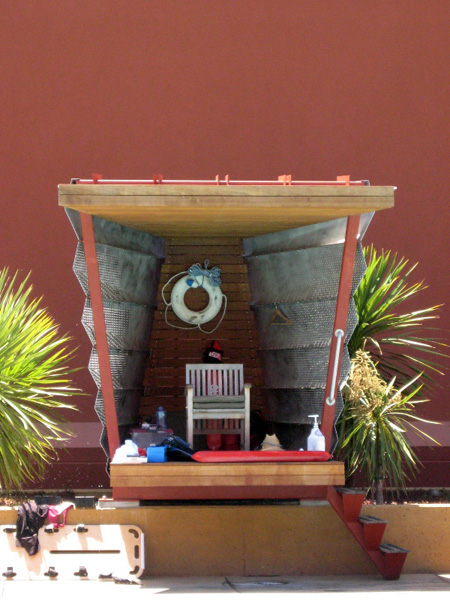

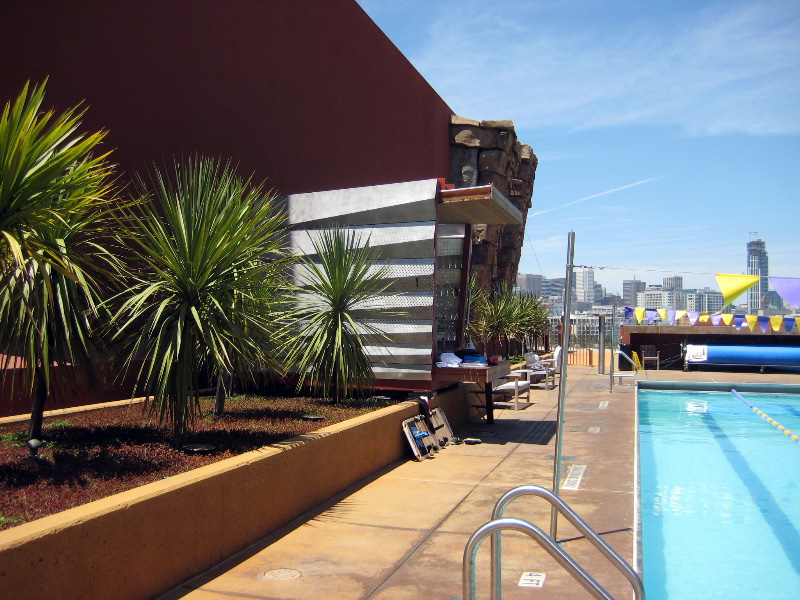

Lifeguard Stand, UCSF Bakar Fitness & Recreation Center, SF, CA

SMW & Associates provided structural engineering design as well as educational instructions for this design-build architectural studio project at CCA.  The structure consists of a welded steel frame that provided lateral resistance for wind load in both directions.  The entire frame was fabricated in the shop and lifted into place by a crane.

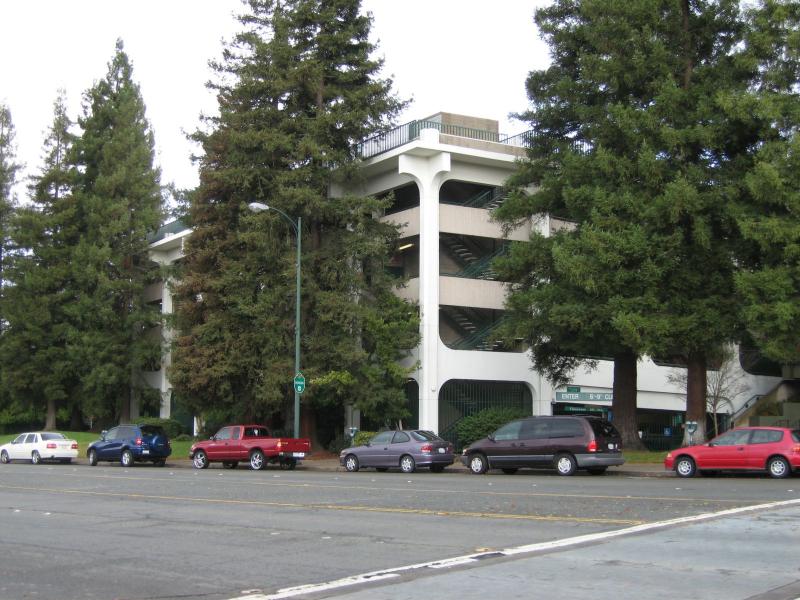

Broadway Parking Garage Seismic Retrofit, Walnut Creek, CA

Seismic strengthening of a five-level parking garage. The seismic strengthening consists of new concrete shear walls, new collector elements and rock anchors for shear wall footings.
